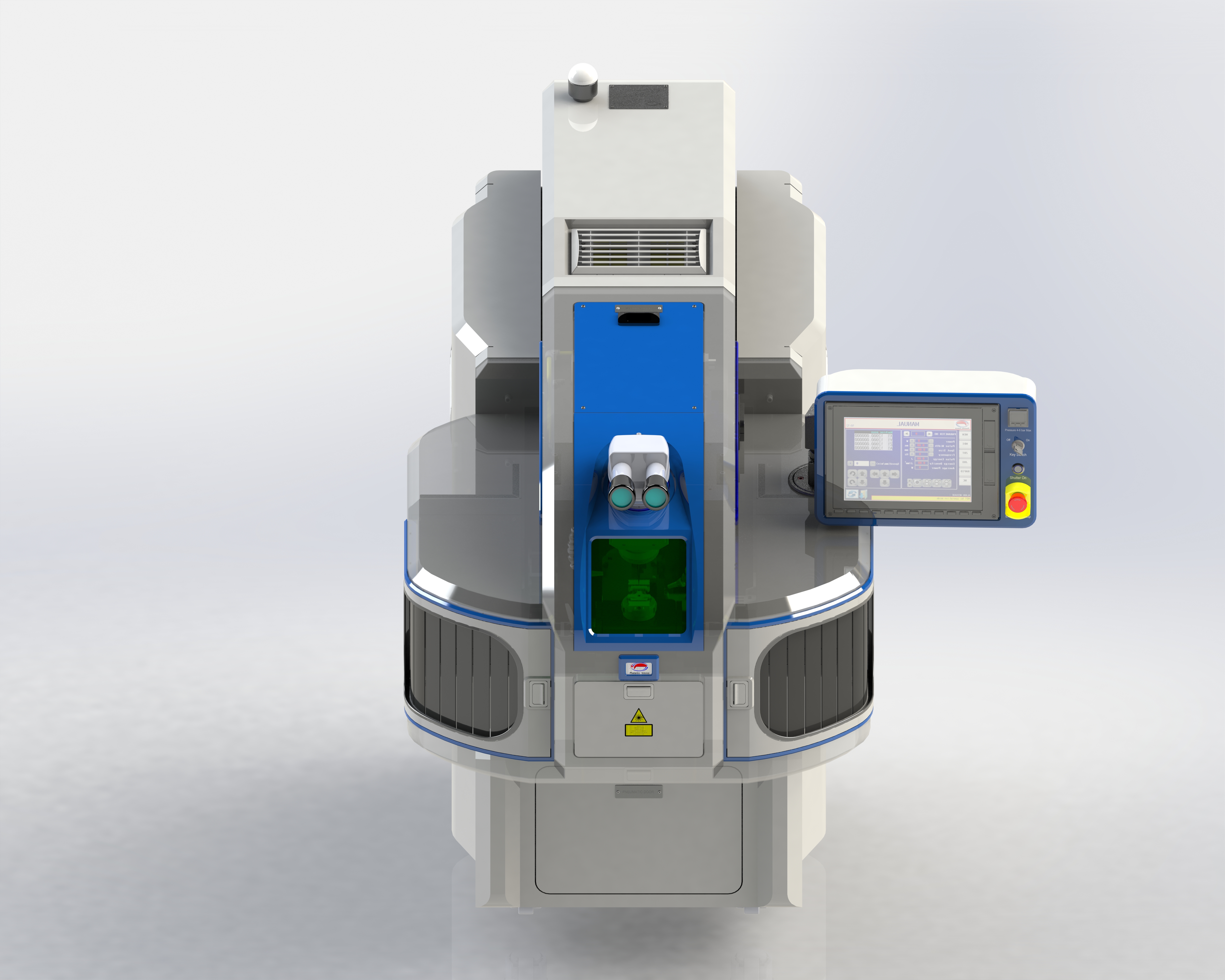

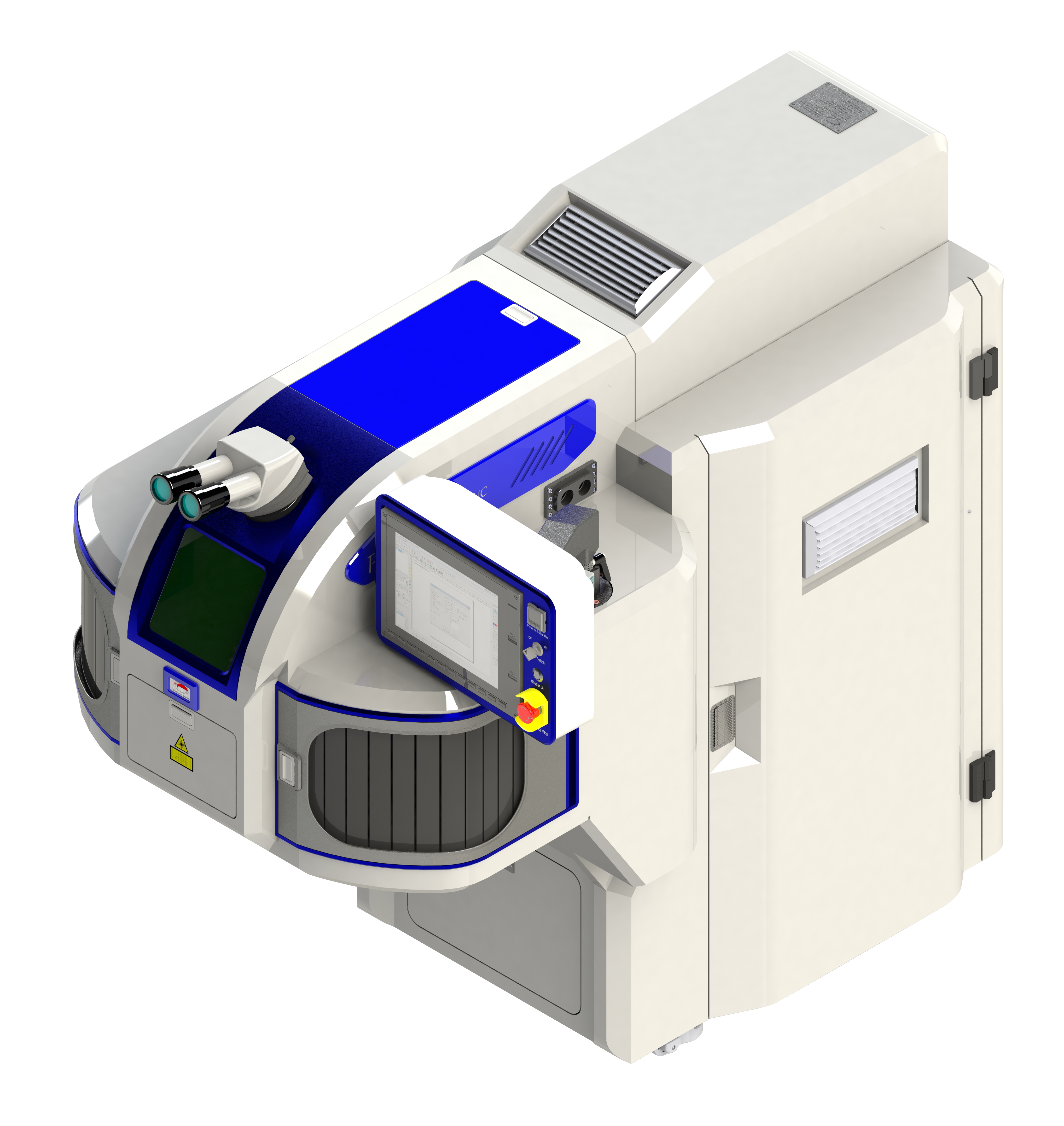

PS WELD CNC

PS WELD CNC – Fast, High-Precision, Cost-Effective Welding

Automated fiber laser welding for delicate, precise, and versatile applications

• Ultimate Precision: Intelligent fiber laser controlled by CNC eliminates human error

• Low Heat Input: Minimizes distortion, burns, and cracks on delicate materials

• Versatile Welding: Supports thin, dissimilar metals, small to medium inserts, fabricated sheets, brackets, and medical devices

• High Efficiency: Fast welding, low operational cost, 24/7 continuous operation

• Easy & Safe Operation: Touchscreen, Joystick, Footswitch, and LED lighting ensure user-friendly and secure handling

Outstanding Features

• High-quality, sharp, and consistent welds

• Lowest heat input for minimal material damage

• CNC programmed control eliminates human error

• Long-life laser source

• Lowest operating cost

Specifications

• Class 1 Ytterbium Fiber Laser 1060–1070 nm, CW / Modulated / Pulsed

• Air-cooled, Workpiece Thickness: 0.15–2.00 mm

• Leica 10X, Ergo Wedge Option 5–25°

• 10.4” Touchscreen with Swivel Arm, LED Natural Lighting

• Supports Lines, Polygons, Splines, Circles, Rectangles, Squares, Cylinder

• Laser Parameter and Contour, 56 Text Cells

Ideal For: Industrial parts, tool inserts, medical devices, fabricated sheets, brackets, and small-to-medium precision components

Outstanding Feeture

• Leila Binocular Microscope with Ergo Wedge (5–25° tilt)

• Digital Messaging Display

• Touch Screen Interface

• Preventive Maintenance Alerts

• Multi-Language Display Support

• 56 Pre-Programmed Application Text Cells

Large Viewing Window

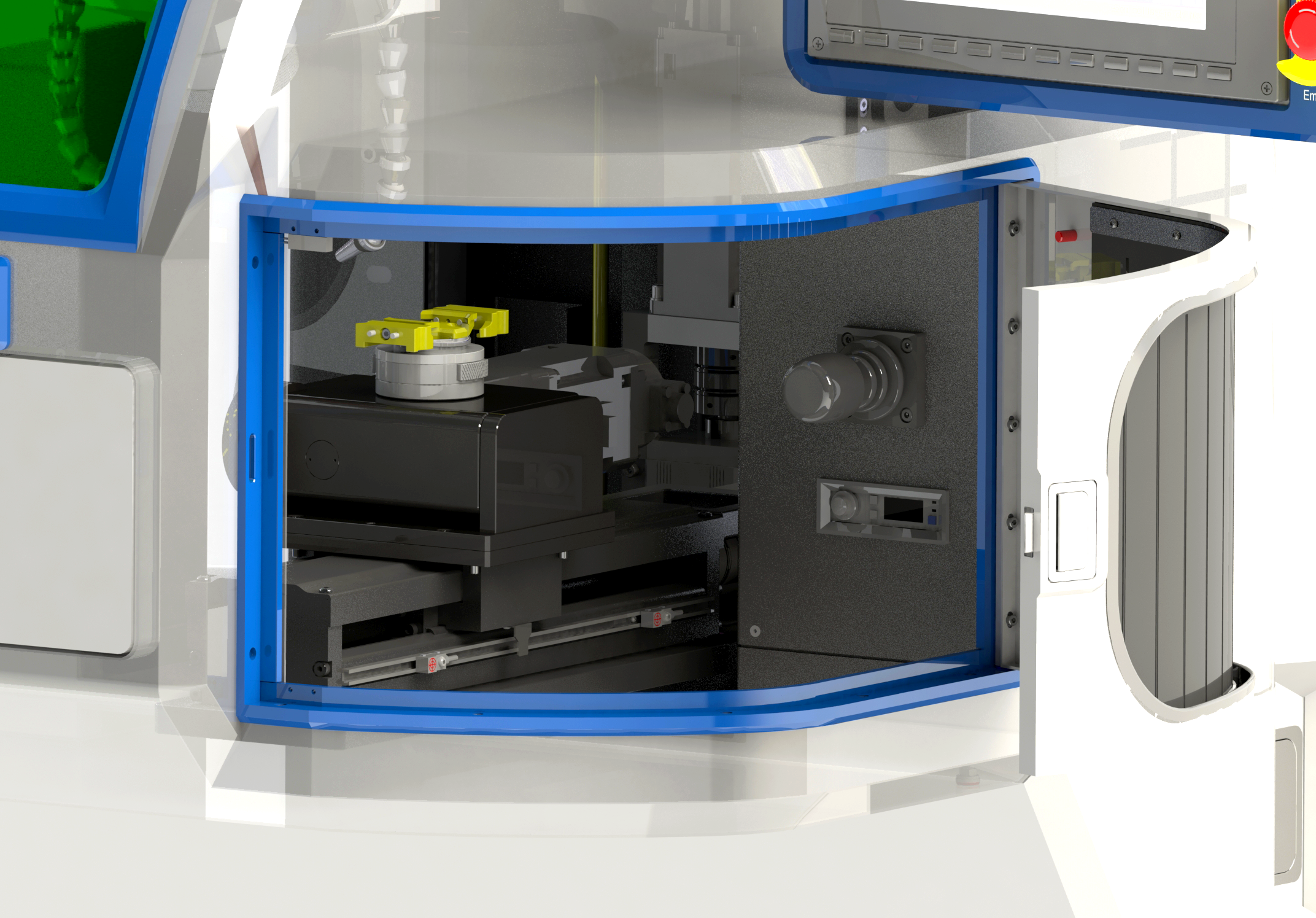

• Multiple Chamber System

• Tri-Door Design

• Low-Profile Automation Chamber

• Full-Size Automation Chamber

Maximum Safety & Efficiency

• • Certified Laser Safety Class 1

  • Air-Cooled System
