Mimaki CFL-605RT & CF2 Series

Mimaki CFL-605RT & CF2 Series

Comprehensive Cutting Solutions for Prototyping, Packaging, and Industrial Production

Mimaki offers versatile cutting solutions, ranging from compact machines for prototyping to large-format flatbed cutters for full-scale industrial production. These systems are designed to support creativity, accuracy, and productivity in every stage of the workflow.

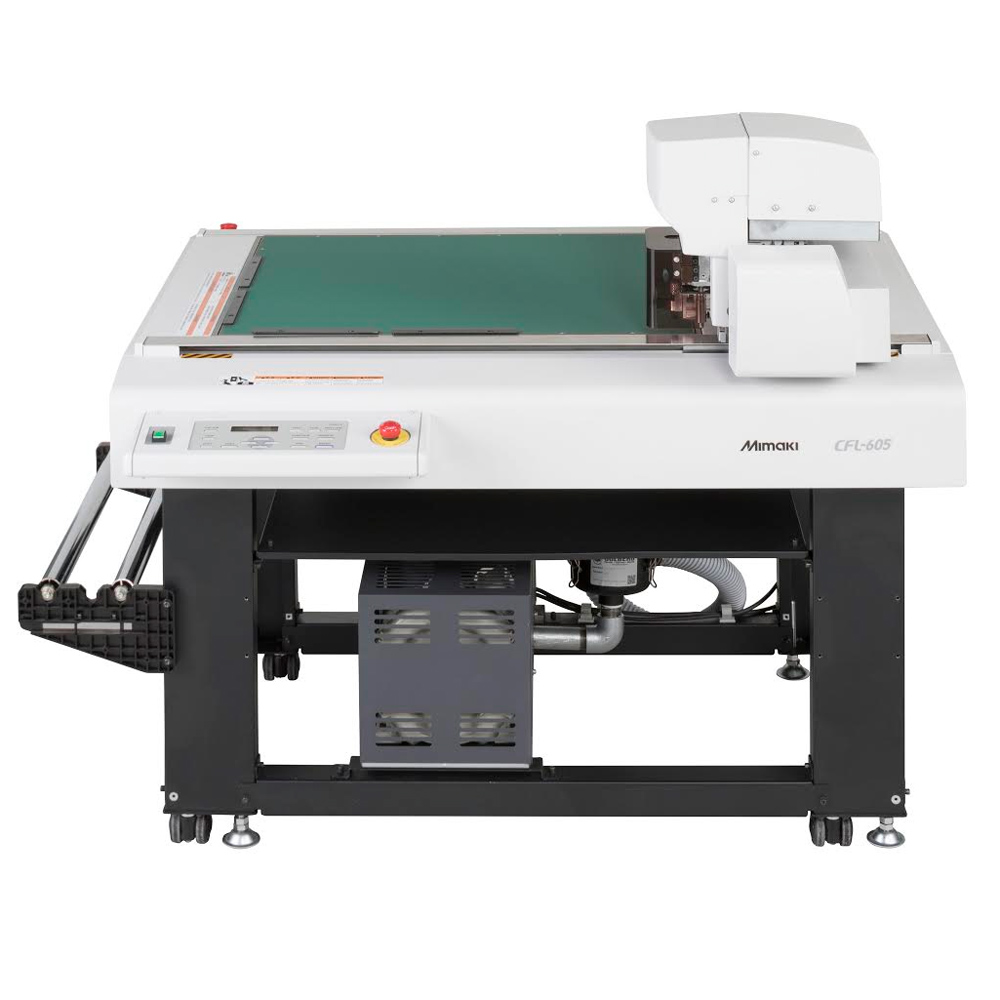

CFL-605RT – Compact Multi-Function Cutter

A versatile and space-saving cutting plotter designed for on-demand packaging and prototype production.

• Effective Cutting Area: 610 × 510 mm (24.0 × 20.0 in)

• Multi-Functionality:

  • Eccentric cutting

  • Tangential cutting (up to 2 mm thickness)

  • Reciprocating cutting (up to 10 mm thickness, ideal for cushioning/foam materials)

  • Creasing with roller tools

• Vacuum suction system to hold materials securely during cutting

• Registration mark reading for high-precision cutting

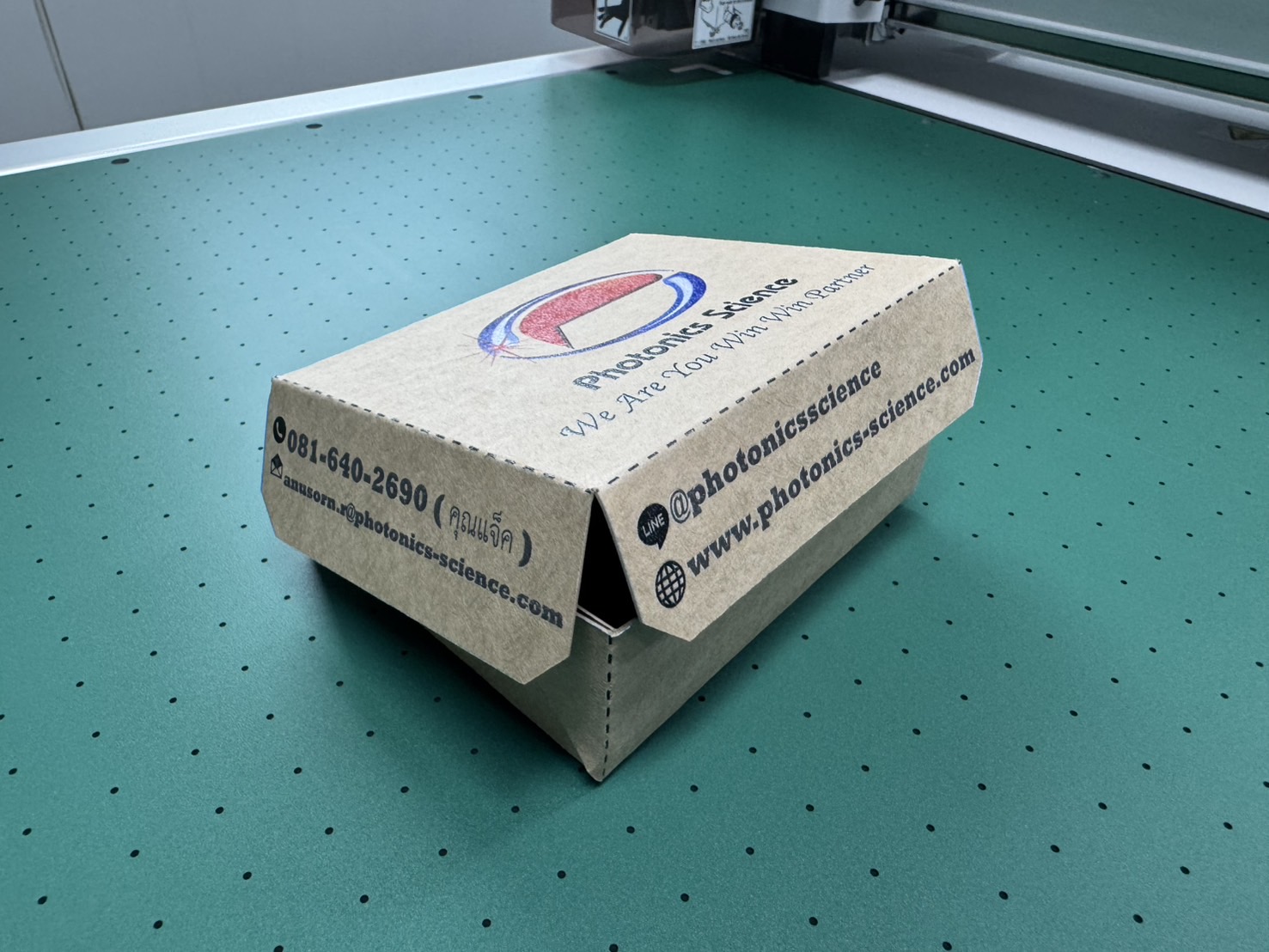

• Best suited for: packaging prototypes, short-run production, cushioning materials, and foam

• Seamless integration with UJF-6042MkII e for a complete workflow, from product and packaging printing to cutting and creasing.

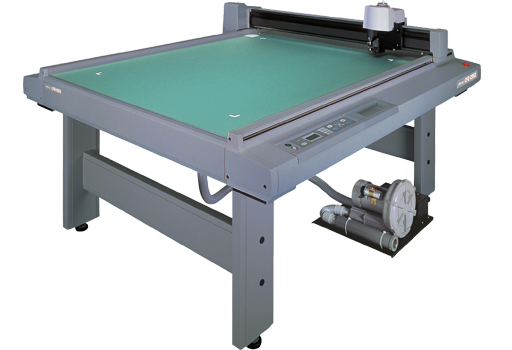

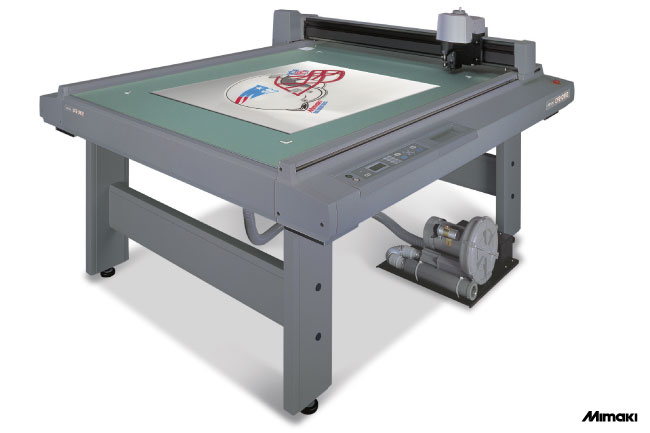

CF2 Series – Large-Format Flatbed Cutting Plotter

A robust and highly flexible flatbed cutter for industrial-level production.

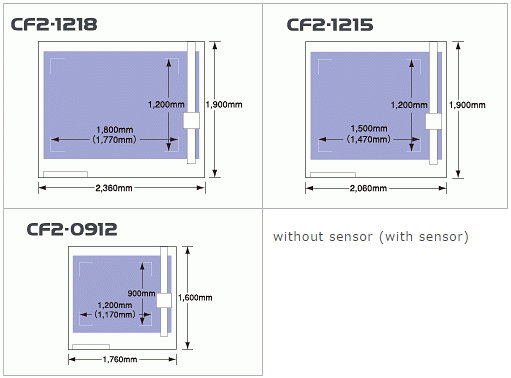

• Wide range of table sizes – from A0 to extra-large formats (up to 1,220 × 2,440 mm)

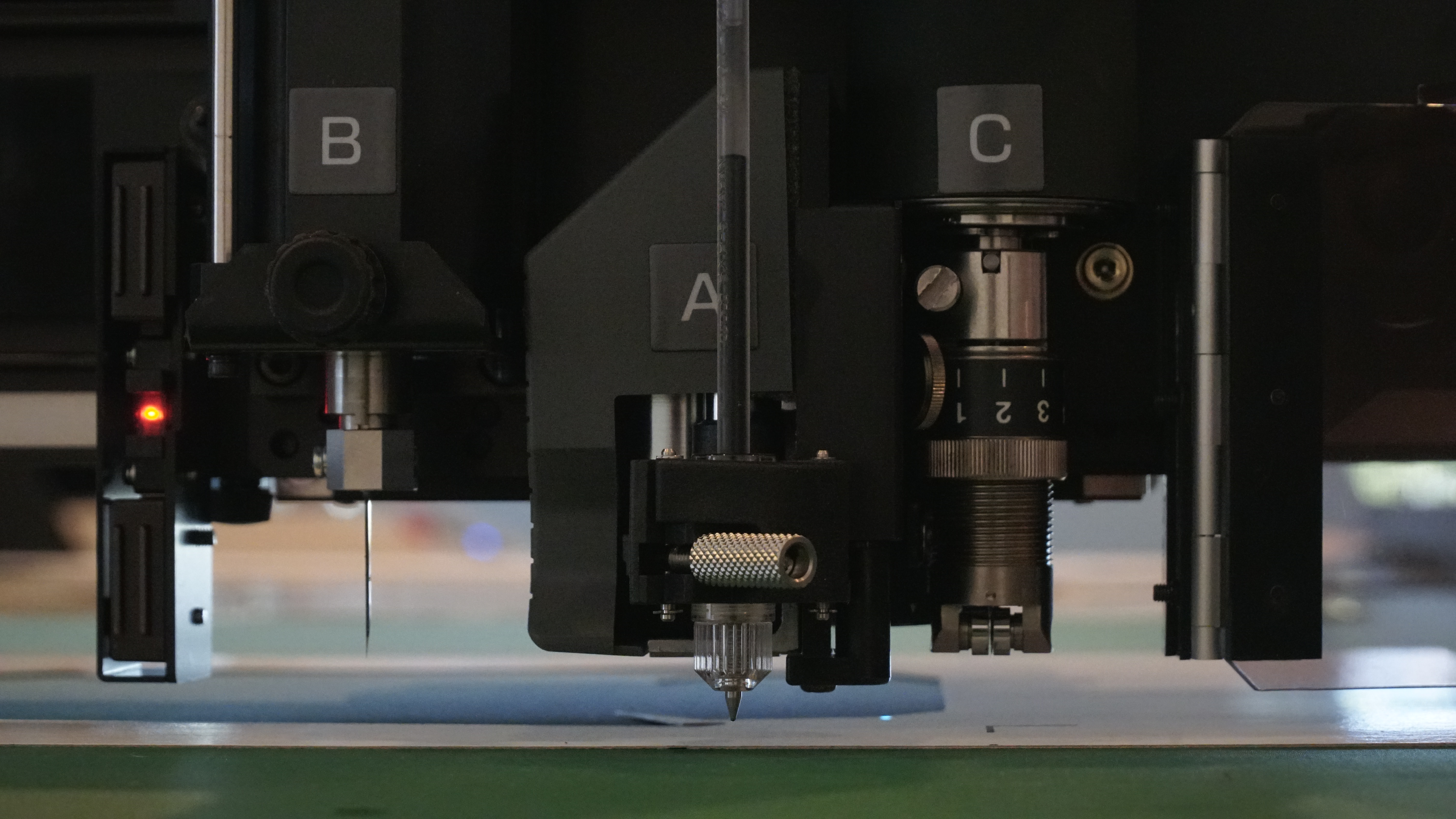

• Interchangeable cutting heads for diverse applications:

  • Tangential cutter

  • Reciprocating cutter for thick materials

  • Rotary cutter for textiles

  • Creasing tools for packaging

• Supports a wide variety of materials: cardboard, foam, plastics, films, thin wood sheets, and industrial substrates

• High-precision cutting with registration mark detection and optional CCD camera

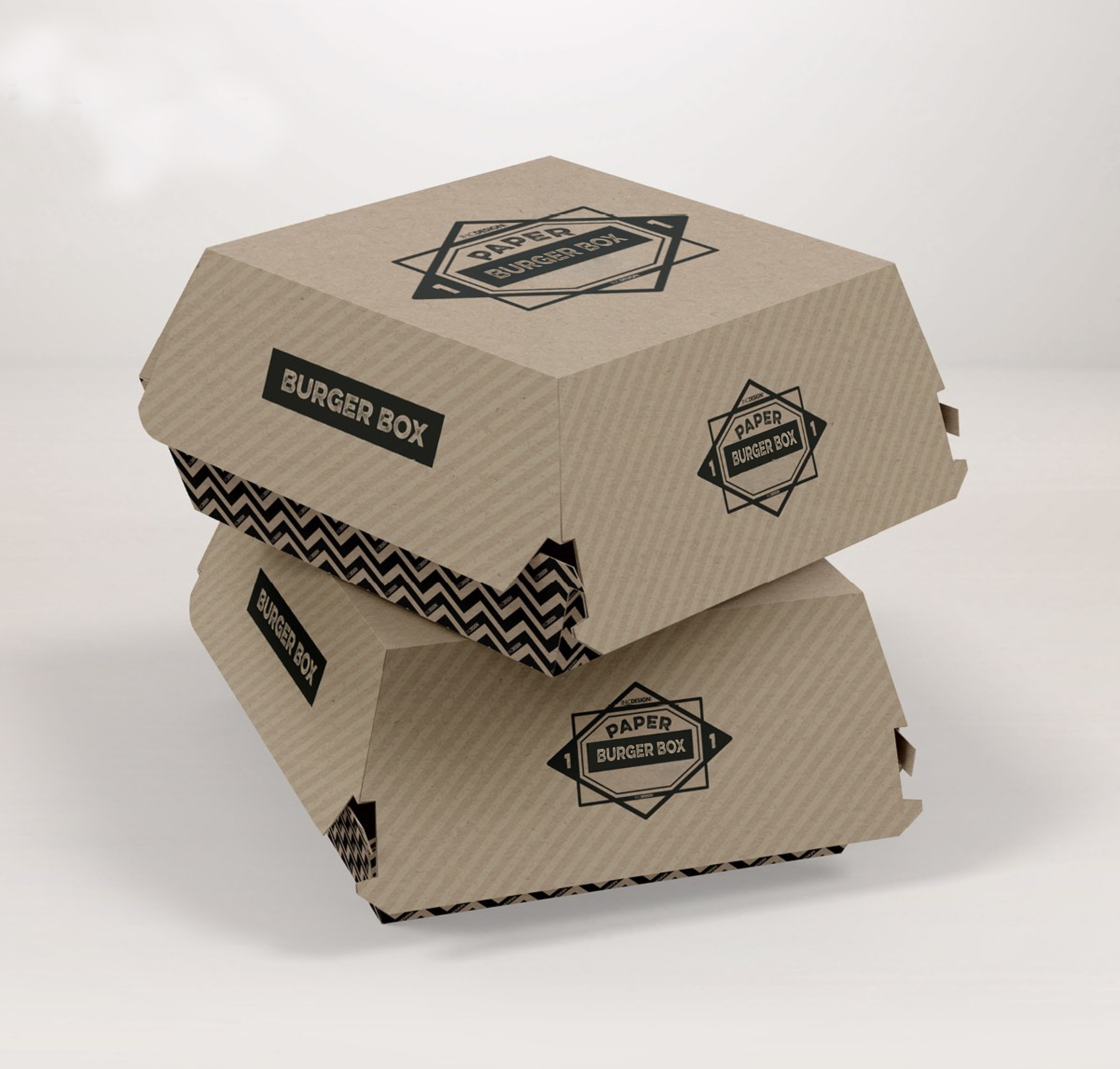

• Best suited for: packaging, display graphics, signage, décor, and industrial short-run production

Choosing the Right Solution

• CFL-605RT → A compact, cost-effective solution ideal for prototyping and short-run packaging.

• CF2 Series → A large-format, heavy-duty solution built for industrial-scale production with superior flexibility.

Both solutions can be seamlessly integrated with Mimaki UV flatbed printers, delivering a complete end-to-end workflow from printing to cutting and finishing.
